EASTRA 4S 30A 14.8V Li-ion Lithium 18650 Battery BMS Electronic Components Electronic Hobby Kit

EASTRA 4S 30A 14.8V Li-ion Lithium 18650 Battery BMS Electronic Components Electronic Hobby Kit

Share

EASTRA 4S 30A 14.8V Li-ion Lithium 18650 Battery BMS Electronic Components Electronic Hobby Kit

Be the first to Review this product
₹542
999
45% off
i
Available offers
  • Bank Offer5% cashback on Flipkart Axis Bank Credit Card upto ₹4,000 per statement quarter
    T&C
  • Bank Offer5% cashback on Axis Bank Flipkart Debit Card up to ₹750
    T&C
  • Bank OfferFlat ₹10 Instant Cashback on Paytm UPI Trxns. Min Order Value ₹500. Valid once per Paytm account
    T&C
  • Delivery
    Check
    Enter pincode
      Delivery by2 Aug, Saturday
      ?
    View Details
    Highlights
    • Power Source: DC
    • RoHS Compliant
    • Material: Epoxy
    • Weight: 10
    Services
    • Cash on Delivery available
      ?
    Seller
    GEEETAELECTRONICS
    3.2
    • 7 Days Return Policy
      ?
  • See other sellers
  • Description

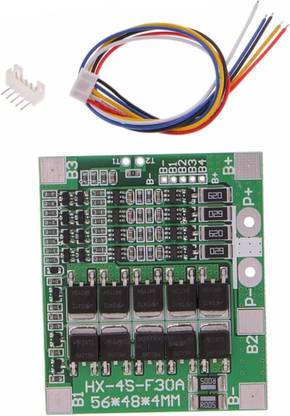

    Features: -This board is 4 string 3.2V Lithium iron phosphate battery protection board. -High current protection board, continuous 30A current, with balance circuit. -The board comes with cable. Specification: Discharge: Continuous Discharging Current: 30A(MAX) Instantaneous Discharge Current: 56A Charge: Charging Voltage: 14.8V Charging Current: 20A (MAX) Overcharge Protect: Over-charge Detect: 3.75±0.05V Protect Delay: 1300MS Over-charge Release: 3.60±0.05V Balance: Detect Voltage: 3.60±0.05V Release Voltage: 3.59±0.05V Balance Current: 58mA Over-discharge Protect: Over-discharge Detect: 2.1±0.08V Over-discharge Detect delay: 145S Release Voltage: 2.3±0.1V Over-current Protect: Detect Voltage: 200mV Detect Delay: 20mS Current Detect: 56±10A Release Condition: Cut Load Inner Resistance: ?20m? Self-Consumption: Working Current: ?30uA Sleep Current (when Over-discharge): ?20uA Working Temperature Range: -30+80° PCB Board Size: 56x47mm/2.2x1.85"
    Read More
    Specifications
    In The Box
    • PACK OF 1
    General
    brand
    • EASTRA
    Model Number
    • 4S 30A 14.8V Li-ion Lithium 18650 Battery BMS
    Type
    • Electronic Components
    ROHS Complaint
    • Yes
    Material
    • Epoxy
    Net Quantity
    • 1
    Dimensions
    Width
    • 2.2 cm
    Height
    • 1.8 cm
    Weight
    • 10
    Power Features
    Battery Type
    • NA
    No Of Batteries
    • NA
    Battery Size
    • NA
    Power Source
    • DC
    Other Power Features
    • This board is 4 string 3.2V Lithium iron phosphate battery protection board; High current protection board, continuous 30A current, with balance circuit, The board comes with cable. PCB Board Size: 56x47mm/2.2x1.85", Discharge: Continuous Discharging Current: 30A(MAX); Instantaneous Discharge Current: 56A, Charge:Charging Voltage: 14.8V; Charging Current: 20A (MAX)., Balance:Detect Voltage: 3.60±0.05V; Release Voltage: 3.59±0.05V; Balance Current: 58mA., Self-Consumption:Working Current: ?30uA; Sleep Current (when Over-discharge): ?20uA; Working Temperature Range: -30+80°
