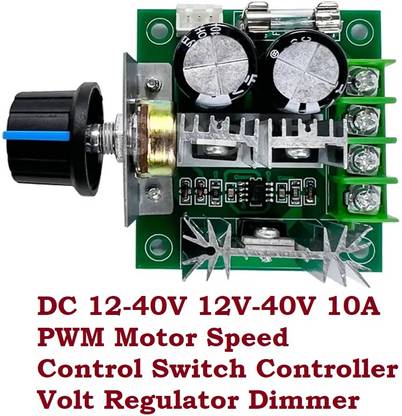

SG Flash HIGH QUALITY DC 12-40V 12V-40V 10A PWM Motor Speed Control Switch Controller Electronic Components Electronic Hobby Kit

This is DC motor controller, please make sure the input voltage is from DC power, do not use home 220V AC, otherwise it will burn out. The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. Specification: 100% brand new and high quality. Input supply voltage: DC 12V-40V The maximum output power: 400W The maximum continuous output current :8A The overload and short circuit protecting current is 10A Static Current:0.02 A ( Standby ) PWM frequency: 13kHz Duty Cycle adjustable: 10%-100% The operation environment temperature:-20?-125? (L*W*H): 6cm x 5.5cm x 2.8cm/2.36"x 2.16"x1.10"(approx) Net weight: 69g
