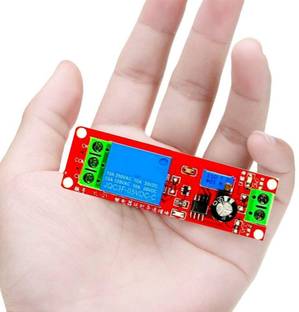

SG Flash NE555 DC 5V 10A Timer Delay Relay Shield Module Sound Recorder and Sound Circuit Electronic Hobby Kit

NE555 Delay Monostable Switch Module item is a timer switch module, based on the NE555 chip, high-performance timing CPU design. The power indicator LED and switch trigger timing indication LEDs. Timing from microseconds to long hours. Applicable to vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices. This is a monostable generator based on the NE555 integrated circuit. It has an adjustable delay time from 0 to 10 seconds using the potentiometer or by changing the capacitance. It is also capable of controlling the device below 220V/10A. Specifications & Features of NE555 Delay Timer Switch Adjustable 0-10 Sec 5V Relay Module:- Module based on the NE555 chip. Input voltage: DC 5V Adjustable time: 0-10 s AC Control voltage: 250V/max. 10A DC Control Voltage: 30V/max. 10A Max. load: 2200W Precision Pulse Generation / Timing. Monostable Operation. Standby no power consumption Excellent temperature stability of 0.005%/°C
