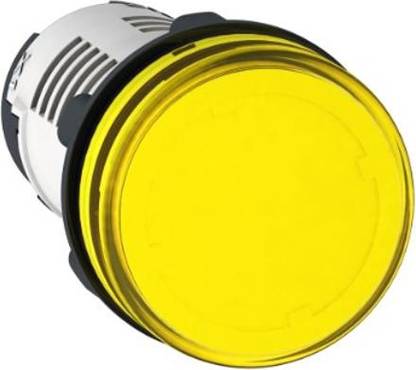

SKR Schneider Yellow Indicator Round Pilot Light Screw Clamp Terminals XB7EV05MPN Inductor  (0 microH)

Specifications- Main range of product Harmony XB7 product or component type Pilot light device short name XB7 mounting diameter 22 mm sale per indivisible quantity 10 shape of signaling unit head Round cap/operator or lens colour Yellow light source LED bulb base Integral LED [Us] rated supply voltage 230...240 V AC 50/60 Hz device presentation Monolithic product Complementary height 29 mm width 29 mm depth 54 mm terminals description ISO n°1 (X1-X2)PL net weight 0.02 kg device mounting Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 fixing center >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm fixing mode Fixing nut beneath head: 2…2.4 N.m connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 tightening torque 0.8…1.2 N.m conforming to EN 60947-1 shape of screw head Cross compatible with JIS No 1 screwdriver Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver [Ui] rated insulation voltage 250 V (pollution degree 3) conforming to EN/IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1 signalling type Steady supply voltage limits 195…264 V AC current consumption 16...20 mA service life 70000 h at rated voltage and 25 °C Environment protective treatment TH ambient air temperature for storage -40…70 °C ambient air temperature for operation -25…70 °C overvoltage category Class II conforming to IEC 60536 IP degree of protection IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 NEMA degree of protection NEMA 4 conforming to UL 50 E NEMA 12 conforming to UL 50 E standards EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 UL 508 JIS C8201-1 vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 electromagnetic compatibility Disturbing field emission class B conforming to EN 55011
