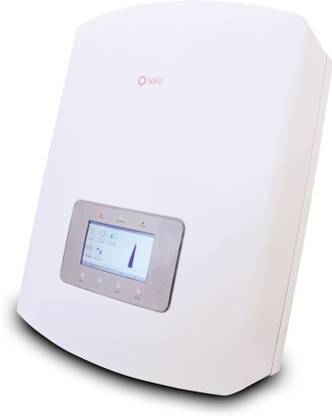

solis SOLIS-30K 30 kw three phase Pure Sine Wave Inverter

Price: Not Available

Currently Unavailable

Warranty

5 Year Manufacturing warranty

Description

Solis three phase series inverters are suitable for difference PV projects with three phase input, which are also perfect models for household, industrial and commercial, as well as small & medium size distributed PV system installations. IP65 designed make it visually pleasing for domestic environment; Over 98% Max. efficiency and featuring with unique 4MPPT design and precise MPPT algorithm, and numerous monitoring option via , WIFI and GPRS interface. All these features has ensure stable and reliable operation of Solis three phase series invertes.

Specifications

In The Box

1 inverter with mounting accessory

General

Brand	solis
Model Number	SOLIS-30K
Battery Included	No
Load Options	11 Fan, 25 CFL, 11 Air Conditioner, 4 Refrigerator, 1 Washing Machine, 20 tubelights, 6 TV, 5 SOLAR PUMP
Type	Pure Sine Wave Inverter
Model Name	30 kw three phase
Mode Type	automatic inverter
Material	silicon, crystalline powder
Solar Power Compatible	Yes

Output Features

Efficiency	98.6% %
Output Voltage	304-460
Output Frequency	50 - 60 Hz
AC Output Types	three phase
Output Power	30000 W

Input Features

Input Voltage	200-800
Input Frequency	50 Hz
Low Cut Input Voltage	200
High Cut Input Voltage	800

Environmental Features

Storage Temperature	-25 ~ +60
Operating Temperature	-25 ~ +60
Noise Level	<30
Total Harmonic Distortion	<3%

Convenience Features

Emergency Power Off	Yes
Display Type	LCD
USB Charging Port	No
Protection Against	Over voltage, Over current, RCD protection, Ground fault current
Cooling System	natural convection

Dimensions

Width	53 cm
Height	70 cm
Depth	35.6 cm
Weight	58.2 kg

Additional Features

Certification	EN50438, G59/3, AS4777, VDE0126-1-1, IEC61727
Corrosion Resistant	Yes

Warranty

Warranty Summary	5 Year Manufacturing warranty
Covered in Warranty	Complete Inverter
Not Covered in Warranty	Physical Damage is not covered, Due to Improper Connection defect.
