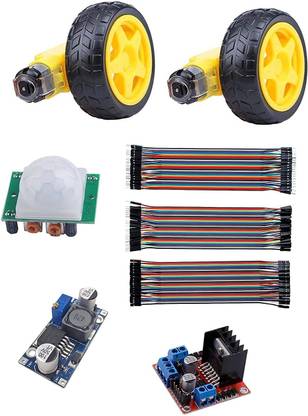

Super Debug DC Motor,3-6V Gear motor with Motor drive controller, TT motor with Wheel,Buck Converter for Arduino Starter Kit Electronic Components Electronic Hobby Kit

Electronic Component Kit Series for Arduino Motor, Raspberry Pi, AI Project, Robotics Set,STEAM KIT,Kids Adults Starters,electronic products DIY, etc. Arduino Motor and Tire/Wheels: Rate voltage: DC 3V-6V Reduction ratio: 1:48 3V-170mA; 120RPM, 0.7KGf.cm torque Size of the motor: 64.2x22.5x22.5mm(without the shaft) Diameter of the tire: 67mm/2.6" Width of the tire: 27mm/1.06" LM2596 Power Converter Features: Module property:Non-isolation buck Rectification mode:Non-synchronous rectifier Input voltage:3V-40V Input Current: 2A Output voltage:1.3V-35V Output current:Rated current is 2A,maximum 3A(Additional heatsink is required) Conversion efficiency:92%( highest ) Switching frequency:65KHz Output ripple:30mV( maximum ) Load regulation:±0.5% Voltage regulation:± 2.5% Work temperature:-Minus 40 degrees - 85 degrees Dimension:43mm*21mm*14mm(L*W*G) Note: 1.Before power-up, please turn each potentiometer 20 turns counter-clockwise 2.Input voltage must be 1.5 V higher than the output voltage. 3.Do not reverse the input and output interface. 4.Keep output under 2.5A and use a heat sink when for a long time working. HC-SR501 Body Sensor Module Features: Operating voltage range: DC 4.5-20V Quiescent Current: <50uA Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger) Delay time: 0.5-200S(adjustable) the range is (0.xx second to tens of second) Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds) HC-SR501 Sensor Diameter:23mm(Default) Board Dimensions: 32mm*24mm Angle Sensor: <100 ° cone angle Lens size L298N : B09522M8ZK Package: 2pcs *DC motors+ Tires/wheels 1pc *LM2596 buck converter 1PC *L298N motor Speed Controller 1pc *HC-SR501 PIR motion sensor 3pcs *40-pin male or female Multicolorful Dupont jumper wires
