Key Features
1. Single socket H4 (LGA 1151) supports
Intel® 6th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
2. Intel® Z170 Express Chipset
3. Up to 64GB Non-ECC UDIMM,
DDR4-3300MHz (OC), in 4 DIMM slots
4. Single GbE LAN port (Intel® i219V)
Single GbE LAN port (Intel® I210-AT)
5. 6 SATA3 (6Gbps); RAID 0, 1, 5, 10
6. 3 PCI-E 3.0 x16 (run at 16/NA/16 or
16/8/8), 2 PCI-E 3.0 x1 (in x4) slots
7. 1 PCIe M.2 (PCIe x4, support
2260/2280/22110)
8. 4 USB 3.0 (2 rear + 2 via header)
6 USB 2.0 (2 rear + 4 via headers)
1 USB 3.1 (10Gbps) Type C (rear)
2 USB 3.1 (10Gbps) ports (headers)
9. 1 DVI-D, 1 DP (Display Port), 1 HDMI 1.4
10. HD Audio 7.1 channel connector by
Realtek ALC1150
11. UEFI BIOS support
Read More
Specifications
In The Box
Sales Package

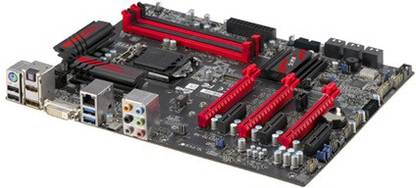

Motherboard
General
Brand
Supermicro
Model ID
MBD-C7Z170-003
Essentials
Form Factor
ATX
Socket Type
LGA1151
Chipset
Intel Z170
Memory
Memory Configuration
64 GB upto GB DDR4 Dimms
Graphics
Integrated Graphics card
NA
Back Panel Ports
USB 2.0 Ports, Controller
6
Warranty
Warranty Summary
3 Year Super Micro Warranty
Covered in Warranty
Warranty Of The Product Is Limited To Manufacturing Defects Only
Not Covered in Warranty
Physical Damage
Warranty Service Type
3 Year Manufacture warranty
