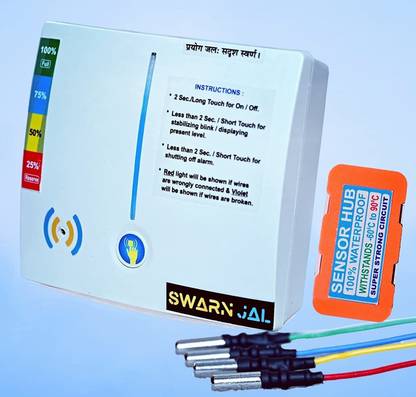

Swarnjal water level indicator with overflow and empty tank alram Wired Sensor Security System

AquaSense is Water Level Indicator and alarm from Prickhome Technologies Pvt. Ltd. that provides 24*7 monitoring of water level in Water tank in a wired fashion. It alarms the user whenever the Water tank becomes full and gives a warning when water tank is about to empty so that user can take actions accordingly. It will also show different water levels with help of different colors. INSTALLATION GUIDE: 1. Open the box and untangle the sensor wires given with Sensor Hub. 2. Measure distance between Overflow and Outlet pipe of the tank and divide this by 3 3. Cut Sensor wires one by one such that Red wire (Level 1) goes to Outlet pipe level of tank. 4. Now reduce each wire length by (Measured Height)/3 so that each wire covers 1/3rd volume of tank and level 4 wire stays just below the Overflow level of the pipe. 5. Attach the given weights with the wires and drop inside the tank such that no two wires touch each other. 6. Use the super glue to fix the sensor hub inside the tank just below the tank Roof with given rubber block and hold it for 30 seconds for proper fix. 7. Attach the Extension Transmission wire with Sensor hub taking care of polarity. 8. Go downstairs, attach the Transmission wires again taking care of polarity and Remove the insulating Plug from Cells in order to start the Device. 9. A green Blinking LED indicator will indicate that device is started properly. 10. Device will blink VIOLET color initially for stabilization and after 15-20 seconds Level will be Prompted to user. ONLY FOR INDOOR USE AND BUZZER SOUND IS LOUD ENOUGH THAT IT IS AUDIBLE INSIDE HOME. THERE IS TOUCH BUTTON IN THE DEVICE THAT SHOULD BE USED TO SHUT OFF THE BEEPS AND ALARMS.
