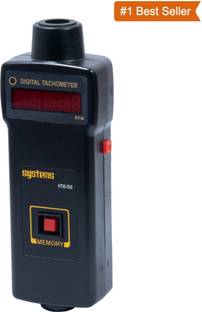

    Systems Tech HTM 560 Non Contact Tachometer
    Home
    Industrial & Scientific Supplies
    Industrial Measurement Devices
    Tachometers
    Systems Tech Tachometers

    Systems Tech HTM 560 Non Contact Tachometer

    Share

    Systems Tech HTM 560 Non Contact Tachometer

    3.9
    12 Ratings & 1 Reviews
    ₹2,705
    ₹6,200
    56% off
    i
    Available offers
  • EMI starting from ₹96/month
    • Warranty
    1 Year Warranty
    Delivery
    Check
    Enter pincode
      Delivery by27 May, Tuesday|Free₹40
      ?
      if ordered before 2:19 AM
    View Details
    Services
    • 1 Year Warranty
    • Cash on Delivery available
      ?
    Seller
    SysconElectroTech
    4.5
    • 7 Days Return Policy
      ?
  • See other sellers
    • Description
    HTM 560 non-contact digital tachometer is a device used to measure the rotational speed of a motor or other rotating device without touching it. It uses technology such as infrared sensors, lasers, or magnetic sensors to measure the rotational speed without having to come into contact with the rotating device. This type of tachometer is often used in applications where contact with a potentially hazardous rotating device could be dangerous or would cause damage to the device. The product has a full digital microcontroller LSI circuit design for high reliability and versatility. It comes with a sturdy, easy-to-carry/handle carrying case box with foam padding for protection against impact. The tachometer is ergonomically designed for handheld-based operations for risk-free RPM measurement at all times. It has excellent quality, compact size and accurate reading. The product is powered by 4 X 1.5V AA Battery and has an auto shut-off feature included.
    Read More
    Product Description
    Handheld Design

    Featuring an ergonomic handheld design, this tachometer offers a comfortable grip for extended use. The compact form factor allows for easy, one-handed operation, ensuring that RPM measurements are taken safely and efficiently. The design prioritises user comfort, reducing strain during operation, and making it suitable for both professionals and hobbyists who need accurate readings on the go.

    Measuring Range

    Capable of measuring RPM from up to 60 to 100,000, this tachometer is effective for a range of applications. It operates accurately within a distance of 75 mm to 300 mm. The up to five-digit LED display ensures that readings are easy to see, even in varying lighting conditions. This broad measuring range makes it versatile for different machinery and equipment.

    High Accuracy

    This tachometer delivers a measurement accuracy of ±0.05% + 1 digit, ensuring precise readings with a sampling time of just 1 second. It features an auto shut-off function to conserve battery life and includes memory recall to review previous measurements. The low battery indicator alerts users when power is running low, while the quartz crystal-controlled time base provides consistent performance and reliability.

    Durable and Portable

    Constructed for durability, this tachometer comes with a foam-padded carrying case to protect it during transport. The included reflective tape assists with accurate readings. The padded carrying case adds a layer of protection, making it ideal for mobile use in different environments.

    Specifications
    General
    Model Number
    • HTM 560
    Type
    • Non Contact Tachometer
    Measuring Distance
    • 75mm (3 inch) to 300mm (12 inch) mm
    Measurement Range
    • 60 RPM – 1,00,000 RPM
    Measurement Accuracy
    • + 0.05% + 1 Digit
    Sampling Time
    • 1 sec
    Display
    • RED LED
    Power Source
    • 4 X 1.5V AA Battery
    Material
    • What in the BOX - Reflective tape (Marks) 1000x12mm(40×0.5 inch) - 1, Padded Carrying Case - 1, User Manual -1, 1-YEAR-WARRANTY
    Net Quantity
    • 1
    Dimensions
    Length
    • 70 mm
    Width
    • 200 mm
    Height
    • 40 mm
    Weight
    • 270 g
    Warranty
    Warranty Summary
    • 1 Year Warranty
    Service Type
    • One-Year Warranty: To initiate a claim, please contact us at +91 9611887180 or email us at info@syscon-tech.com.
    Covered in Warranty
    • Digital Tachometer
    Not Covered in Warranty
    • Tape/Box/Wire/Other Outer Products
