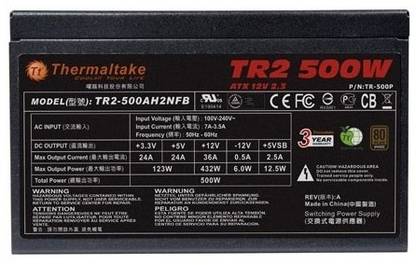

    Thermaltake TR2 500W Bronze 500 Watts with 5 SATA Cables

    Thermaltake TR2 500W Bronze 500 Watts with 5 SATA Cables

    Price: Not Available
    Currently Unavailable
    Thermaltake provides 5 years warranty for all the Low end and midend PSUs and 7 years for highend PSUs including manufacturing defects and services, but not defects due to mishandeling.
    Highlights
    • Power Output: 500 W
    • 1 12V Power Rails
    • ATX 12V Version: 2.3
    • Number of Fans: 1
    Specifications
    In The Box
    Sales Package
    • PSU and Respective Screws
    Other Features
    Additional Features
    • Double-Forward Switching Circuitry
    Warranty
    Domestic Term
    • 5 Years
    Service Type
    • Carry In
    Covered in Warranty
    • Any Problem which has manufacturing defect will be warrantied
    Not Covered in Warranty
    • Thermaltake does not cover any accidental or physical damage
    Warranty Type
    • Limited
    Warranty Summary
    • Thermaltake provides 5 years warranty for all the Low end and midend PSUs and 7 years for highend PSUs including manufacturing defects and services, but not defects due to mishandeling.
    Maximum Current
    Current at DC Output of +3.3 V
    • 24 A
    Current at DC Output of +5 V
    • 24 A
    Current at DC Output of +12 V
    • 36 A
    Current at DC Output of -12 V
    • 0.5 A
    Current at DC Output of +5 V sb
    • 2.5 A
    General
    Brand
    • Thermaltake
    Series
    • TR2
    Part Number
    • TR-500P
    Power Output
    • 500 W with Maximum Power Output of600 W
    ATX & EPS Version
    • ATX 12V v2.3
    Processor Support
    • Intel and AMD Processor Support
    Power Rail
    • 1 x 12V Power Rails
    Model Name
    • TR2 500W Bronze
    Key Features
    • 500 W power Output, ATX 12V v2.3, 1 x 12V Power Rail, 100 - 240 Vac Input Voltage, 100000 hours MTBF, 85 % Efficiency
    Connectivity
    Motherboard
    • 1 Motherboard Connector with 24 pin
    CPU
    • 1 CPU Connector with 4 + 4 pin
    PCI-e
    • 1 PCI-e 6 pin and 1 PCI-e 6+2 pin
    SATA
    • 5 SATA Cables
    Floppy
    • 1 Floppy Connector with 4 pins
    Peripheral
    • 5 Peripheral Connector with 4 pins
    Dimensions
    Width x Height x Depth
    • 150 x 86 x 140 mm
    Features
    Fan Type
    • 1 x 120 mm Ultra-Silent, Speed Control
    Temperature
    • 10 to 50 °C (Operating Temperature), -20 to 80 ?C (Storage Temperature)
    Humidity
    • 5 to 95 % (Operating Humidity), 5 to 95 % (Storage Humidity)
    Protection
    • Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Current Protection (OCP), Over Power Protection (OPP)
    Safety Standards
    • UL, CUL, FCC, TUV, VDE, CE, CB, BSMI, GOST
    Certification
    • 80 Plus Bronze
    Power
    Power Factor Correction (PFC)
    • Active PFC with Value of 0.99
    Input Voltage 1
    • 100 - 240 V
    Input Current
    • 3.5 -7 A
    Input Frequency
    • 50 - 60 Hz
    Power Good Signal
    • 100 ~ 500 ms
    Hold Up Time
    • 17 ms
    Efficiency
    • 85 %
    Mean time between failures (MTBF)
    • 1,00,000 hr
