ThinkLogix STM32F103C8T6 Minimum System Board Microcomputer STM32 ARM Cortex-M3 Micro Controller Board Electronic Hobby Kit

Get notified when this item comes back in stock.

ThinkLogix Electronic Kits

ThinkLogix STM32F103C8T6 Minimum System Board Microcomputer STM32 ARM Cortex-M3 Micro Controller Board Electronic Hobby Kit

Be the first to Review this product

Special price

₹400

₹999

59% off

Sold Out

This item is currently out of stock

Highlights

Power Source: Battery, DC
RoHS Compliant
Material: Carbon Fiber
Weight: 45

Seller

ThinkLogix

(Not Enough Ratings)

7 Days Return Policy
?

See other sellers

Description

The STM32F103C8T6 is a versatile and highly capable development board based on the STM32F103C8 series microcontroller from STMicroelectronics. This board is a popular choice among electronics enthusiasts, hobbyists, and professionals for various embedded system projects. The STM32F103C8T6 development board is a feature-rich and cost-effective platform that allows developers to explore the capabilities of the STM32 microcontroller family. At its heart, it boasts the STM32F103C8T6 microcontroller, which is part of the ARM Cortex-M3 series. This 32-bit microcontroller runs at a clock speed of up to 72 MHz, providing the processing power required for a wide range of applications.

Specifications

In The Box

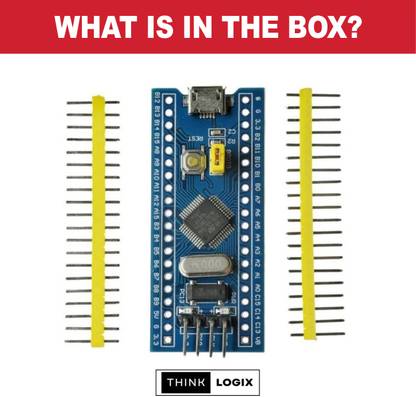

STM32F103C8T6 Minimum Development Board, Pin Headers

General

brand	ThinkLogix
Model Number	STM32F103C8T6 Minimum System Board Microcomputer STM32 ARM Cortex-M3
Type	Micro Controller Board
Minimum Age	10
ROHS Complaint	Yes
Material	Carbon Fiber
Net Quantity	1

Additional Features

Other Features

SWD interface: support for simulation, download and debug., Mirco USB interface: power supply and USB communication, does not support the download., USART1 interface: USART1 can be used to download the program, or use the USART1 for communication., MCU pin interface: leads all I / O port pins, easy to connect with peripherals., 5V and 3.3V power input and output interface: commonly used in external power supply, or with other modules for common ground treatment

Dimensions

Width	5.33 cm
Height	1.52 cm
Weight	45

Power Features

Battery Type	Lithium Ion
No Of Batteries	0
Battery Size	0
Power Source	Battery, DC
Power Consumption	0.0001
Other Power Features	The board based on the most basic MCU circuit, 8M and 32768 crystal circuit, USB power supply circuit., The core board is divided into two rows leads to all the I/O port., With SWD simulation debug download interface, simple and convenient, debugging speed., The use of the Mirco USB interface, you can do USB communication and power supply, USB interface, compatible with the ordinary Andrews mobile phone charger interface., RTC crystal Epson brand, easy to start, more stable., With double pin, but the pin does not default welding, the user according to their own application scenarios to choose their own welding direction., Keil can be used to compile, IAR compiler, can be downloaded through the J-Link or USART1 procedures, the procedures are the owner and debugging procedures.

Be the first to ask about this product
