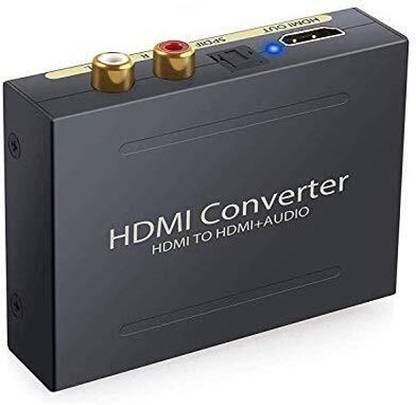

Tobo HDMI to HDMI Audio Optical SPDIF + RCA L/R Extractor Converter Audio Splitter Media Streaming Device  (Black)

Features: 1. Easy to install 2. High quality and compatibility in Product Category 3. Supports TV and various Blu-ray player 4. One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output 5. Output audio support : SPDIF+R/L analog Audio Output. 6. SPDIF output : support 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH(it does NOT support Dolby Digital Plus and PCM 5.1CH and beyond) 7. Input Resolution : up to 1080P(50/60Hz)/720P/480P 8. LED indication 9. Power supply : DC 5V/1A Specifications : 1. HDMI resolution : 1080P/1080i/720p/576p/576i/480p/480i 2. Support video color format : 24bit/deep color 30bit,36bit 3. Audio output : L/R+SPDIF 4. Max bandwidth 225MHz 5. Max baud rate 6.75Gbps 6. Input/Output TMDS signal 0.5~1.5Volts p-p(TTL) 7. Input/Output DDC signal 5Volts p-p (TTL) 8. Input cable distance. ≤15m AWG26 HDMI standard cable 9. Output cable distance ≤20m AWG26 HDMI standard cable 10. Max working current : 500mA 11. Power adapter format Input : AC (50HZ, 60HZ) 100V-240V; Output : DC5V/1A 12. Operating Temperature range (-15 to +55¡æ) 13. Operating Humidity range 5 to 90%RH (No Condensation) 14. Dimension : 84X61.8X20mm (L x W x H)
