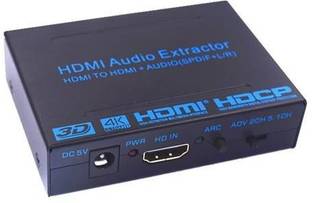

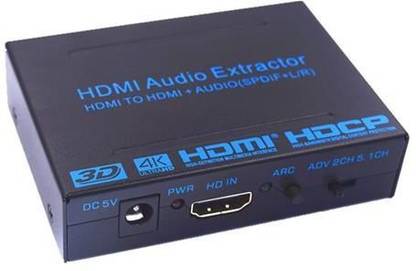

Tobo TV-out Cable 4k HDMI Audio Extractor Splitter for SPDIF RCA Stereo L/R Analog Output  (Black, For TV)

HDMI Audio Extractor, HDMI to HDMI + Audio (SPDIF+R/L), Support ARC 4K EDID Setting: One HDMI input converter to one HDMI + one SPDIF+ one R/L audio out Output audio support: SPDIF+R/L analog audio output Support full HD 1080P, full 3D, 4K*2K resolution Support ARC function: Without adding one extra HDMI Cable, it can reverse the audio to the AV amplifier by HDMI cable connection with HD TV while the HD TV receive the audio and video content, HDMI working in dual mode, can reduce the number of ports HDMI to achieve the synchronization of audio signal separation. There are ADV / 2.0CH / 5.1CH three kinds of audio mode options LED indication: when source or sink is working, LED will light No loss of quality Installs in minutes Need DC5V/1A power supply. Specification: HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i Support video color format: 24bit/deep color 30bit,36bit Audio output: L/R+SPDIF Max bandwidth: 300MHz Max baud rate: 9.0Gbps Input/Output TMDS signal: 0.5-1.5Volts p-p(TTL) Input/Output DDC signal: 5Volts p-p (TTL) Input cable distance: ?15m AWG26 HDMI standard cable Output cable distance: ?20m AWG26 HDMI standard cable Max working current: 500mA Power adapter: Input: AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A Operating Temperature range: (-10 to +55°C) Storage Temperature range: -20 to +60°C Operating Humidity range: 10 to 90%RH (No Condensation) Storage Humidity range: 5 to 95%RH (No Condensation) Dimension (L x W x H): 84.5 x 61.8 x 21mm Weight: 135g. Package included: 1 x HDMI Audio Extractor 1 x 5V Power Adapter 1 x User Manual.
