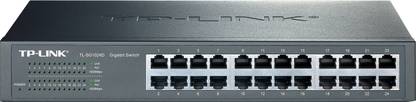

TP-LINK TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch

Price: Not Available

Currently Unavailable

3 Years Domestic WarrantyKnow More

Highlights

Type: Unmanaged
Number of Ethernet Ports: 24
Speed: 10/100/1000 Mbps

Specifications

In The Box

24-Port Gigabit Desktop / Rackmount Switch, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

General

Brand	TP-Link
Model	24-Port Gigabit Desktop/Rackmount Switch
Type	Unmanaged
Installation	Plug and Play
Part	TL-SG1024D
Key Features	Supports MAC Address, Fanless Design, Plug and Play, Supports IEEE 802.3x Flow Control, 24 x 10/100/1000Mbps RJ45 Port, Non-blocking Switching Architecture, Green Technology, Auto-learning and Auto-aging, Supports Auto MDI / MDIX

Operating Conditions

Operational Humidity	10 % to 90 % Non-condensing
Operational Temperature	0DegC - 40DegC
Storage Humidity	5 % to 90 % Non-condensing
Storage Temperature	-40DegC - 70DegC

Power

Power Adapter Input

100 - 240 V AC, 50 - 60 Hz

System Requirements

Operating System

NT, 7, 8, 2000, UNIX, XP, MAC OS, NetWare, Linux, Windows: 98SE, Vista

Network Ports

Number of Ethernet ports	24
Speed	10/100/1000 Mbps

Supported Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3

Network Features

Forward Rate	35.7 Mbps
Bandwidth	48 Gbps
MAC Address Database	8000

Indicators

LEDs	Power, Link/Activity

Additional Features

FCC Certification, CE Certification, RoHS Certification, Network Media: 10 BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100 m) 100 BASE-TX/1000 BASE-T: UTP Category 5, 5e or above Cable (Maximum 100 m), Fan Quantity: Fanless, Jumbo Frame: 10 KB, Green Technology: Innovative Energy-efficient Technology Saves Power Upto 40%, Transfer Method: Store and Forward, Non-blocking Switching Architecture, Auto-MDI / MDIX, MAC Address Auto-learning and Auto-aging, Auto-negotiation Ports, Flow Control

Dimensions

Mount Type	Desktop, Rack Mount
Height	44 mm
Width	294 mm
Depth	180 mm

Warranty

Service Type	Carry In
Domestic Term	3 Years
Covered in Warranty	Manufacturing Defect
Not Covered in Warranty	Physical Damage
Warranty Summary	3 Years Domestic Warranty
Domestic Warranty	3 Year

Ratings & Reviews

4.2

★

25 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Classy product

extremely good product, easy to use, no configuration required

Dr. Parth Amin

Certified Buyer, Ahmedabad

Dec, 2019

Permalink

Report Abuse

Questions and Answers

Q:Every switch slot are 1gbps

A:Yes

Darshan Vithani

Certified Buyer

Report Abuse

Q:can i connect it to airtel vdsl router to further distribute the internet conectivity over lan? or do we need a wan port switch for it?

A:This is a switch. your VDSL router would be taking care of wan side. you just connect the lan port to this switch.

The Swains

Certified Buyer

Report Abuse

Didn't get the right answer you were looking for
