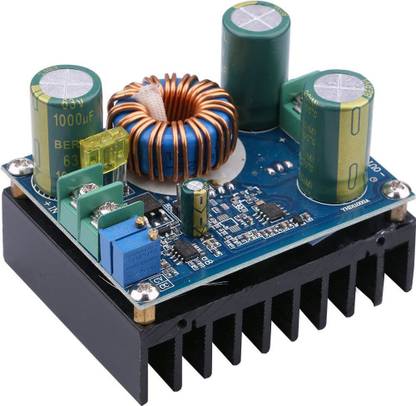

TRUSTECH DC Boost Converter DC-DC Step Up Voltage Converter 8-16V to 12-60V 12A 600W Adjustable Power Supply Module Volt Regulator Booster Module Electronic Components Electronic Hobby Kit

Name: 600W boost constant current module Properties: non-isolated step-up module (BOOST) Input voltage: 2 input voltage ranges selectable (selection By jumpers on the board) 1.DC8-16V ,input (for three strings and 12V lithium battery applications) state in this field, do not exceed voltage input，Otherwise it will burn module!!! 2. DC12-60V input factory default range (for wide input voltage range applications) Input Current: 16A (MAX) enhance heat dissipation over 10A Quiescent operating Current: 15mA (12V to 20V, output voltage is higher ,Quiescent current will increase) Output Voltage :DC12-80V adjustable Output Current: 12A MAX ,over 10A enhance heat dissipation (Related to Input and output voltage difference, greater the voltage difference ,Output current is smaller) Constant current range :0.1-12A Output power: = Input voltage * 10A, such as: Input 12V * 10A = 120W, input 24V * 10A = 240W,Input 36V * 10A = 360W, input 48V * 10A = 480W, input 60V * 10A = 600W.For larger power, can use two modules in parallel, such as output to 15A, you can use 2 modules in parallel,current of each module can be transferred to 8A. Operating temperature: -40 to +85 ℃(ambient temperature is too high to enhance heat dissipation) Operating Frequency: 150KHz Short circuit protection: (enter the 20A fuse) double circuit protection, use more secure. Input Reverse Polarity Protection: None, (if required in the input string into the diode) Output anti-anti-irrigation: Yes, for charging plus blocking diode is not required. Wiring: Free welding output terminals Module dimensions: length 76mm *width 60mm *height 56mm Module Weight: 205 g packing including： 1X Boost step up power supply
