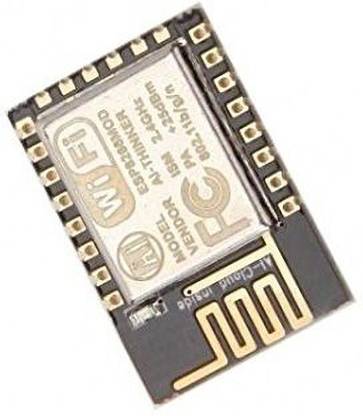

TRUSTECH MO17 Esp8266 ESP 12E Serial Wi-Fi Wireless Transceiver Smd Module with Adc, Spi and Ex Electronic Components Electronic Hobby Kit

Esp8266 esp12e serial Wi-Fi wireless transceiver smd module with a DC, spi and extra pinouts esp826612e is an enhanced version esp826612, improve peripheral circuitry increases impedance matching, the signal output is better, whether it is stable or antijamming capability, have been greatly improved, For users before selecting the esp12, it does not matter even if the product has been made, enhanced version is fully compatible with previous firmware, the pin has added six io ports on the basis of the esp12, spi leads. Esp8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor. Esp8266 has powerful onboard processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its gpios with minimal development upfront and minimal loading during runtime. Its high degree of on chip integration allows for minimal external circuitry and the entire solution, including frontend module, is designed to occupy minimal piece area. Features: sdio 2.0, Spi, uart 32pin qfn package integrated rf switch, balun, 24dbm pa, DCxo and pmu integrated risk processor, on chip memory and external memory interfaces integrated mAC or baseband processors quality of service management i2s interface for high fidelity audio applications on chip low dropout linear regulators for all internal supplies proprietary spurious free clock generation architecture integrated wep, tkip, aes and wapi engines solutions: supports apsd for optimal voip applications patented spurious noise cancellation algorithm for integration in soc applications supports bluetooth coexistence interface self calibrated rf to ensure optimal performance under all operating conditions zero factory tuning no external rf components specifications: 802.11 B or g or n Wi-Fi direct (p2p), softap integrated tcp or ip protocol stack integrated tr switch, balun, lna, power amplifier and matching network integrated plls, regulators, DCxo and power management units plus 19.5Dbm output power in 802.11B mode power down leakage current of <10ua integrated low power 32bit cpu could be used as application processor sdio 1.1 or 2.0, Spi, uart stbc, 1×1 mimo, 2×1 mimo ampdu and amsdu aggregation and 0.4Ms guard interval wake up and transmit packet's in < 2ms standby power consumption of < 1.0Mw (dtim3).||Integrated tr switch, balun, lna, power amplifier and matching network;Integrated tcp or ip protocol stack;802.11 B or g or n
