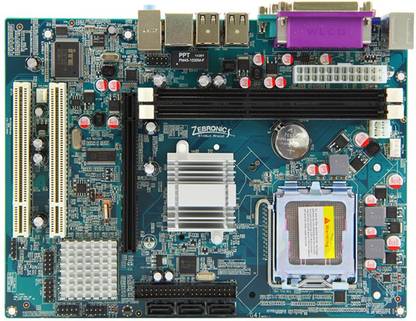

ZEBRONICS Z41 SOCKET 775 LGA 775Socket Micro-ATX Intel® 82GM45 +Intel® 82801IBM I/O controller Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Highlights

Intel® 82GM45 +Intel® 82801IBM I/O controller
Data Rate DDR3
Maximum RAM Capacity 8 GB
Form Factor: Micro-ATX

Description

• Processor support (LGA775) : Celeron CPU, core 2 duo (Conroe) CPU & Intel® Pentium HT CPU • Chipset : Intel® 82GM45 +Intel® 82801IBM I/O controller • Memory support : Two DDR3 dual-channel slots ( Max.memory supported : 8GB ) : Support DDR3 1066/1333MHz memory • LAN : Supports 100/1000 Mbps (Realtek 8105E ) • Audio : 6 channel high definition audio (Realtek 662) (3x3.5mm audio ports) • Back panel : 1x PS/2 mouse/keyboard port 1xVGA 1x COM 1x LPT 4x USB 2.0 ports 1x LAN port, 3 audio jacks • On-Board connectors : 1x front panel connector 1x speaker connector 1x front panel audio connector 3x USB 2.0 connector 3x SATA ports 1x 4-pin CPU fan connector 1x SYS fan connector 1x 24-pin ATX power connector 1x 4-pin ATX 12V power connector 1x clear CMOS header 1x IDE connector • Slots : 1x PCI Express x16 slot, 2 PCI

Specifications

In The Box

Sales Package

Motherboard

Memory

Number of Memory Slots	3 Slots
Memory Configuration	8 GB DDR3 DIMM

General

Brand	ZEBRONICS
Model ID	Z41 SOCKET 775

Connectivity

Ethernet Controller

Realtek 8105E

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 775
Chipset	Intel® 82GM45 +Intel® 82801IBM I/O controller
Chipset Manufacturer	Intel

Audio

Audio Codec

Realtek 662

Ratings & Reviews

3.7

★

75 Ratings &

24 Reviews

5★
4★
3★
2★
1★

Good Product

A good product at this price.The shipping was swift and timely and most of all the packing was very good. I would recommend this supplier to others.

Bailon Mascarenhas

Certified Buyer, Quepem

Aug, 2015

Permalink

Report Abuse

This is one of the excellent motherboard

my pc spec zeb z41 motherboard 2.832ghz core 2 duo, zion 4gb ram with zotac gt610 graphic card.I use to do vm and play latest game like nfs mw 2012 run rival far cry 3,4 gta 4 all 3 edition .not a single lag came from this motherboard.
just 1 problem I found is that sometime del doesn't work when I need to enter bios or may be its my keyboard fault as it is old enough.
Those who want to use for study and want to play medium or low graphic game can use this motherboard.Over 1year and 1 month 1...

Piu Sarkar

Apr, 2016

Permalink

Report Abuse

Classy product

Good product but not excellent it does not support all dual core processor ram speed decreased to 1066 mhz 64 bit processor supported but graphics driver wont install with 64 bit os only works with 32 bit os....but all over its a below avarege product

Kinjal Chakraborty

Certified Buyer, Kolkatta

Jul, 2018

Permalink

Report Abuse

Brilliant

It's a good product and it supports 8 GB of RAM because I have tested it but there are many websites which gives us wrong information that it supports only 4 GB of RAM I would highly recommend to get this product.

Flipkart Customer

Certified Buyer, Bhagalpur

Mar, 2017

Permalink

Report Abuse

Smooth so far...

I bought this from a shop and its working smooth so far no problems after 1 month usage with 1 year warranty and it supports 4 gb ram(Kingston) in 1 slot as am using and other slot also can be used by 4gb ... Overall its ok for core 2 duo.

Kunal prasad

Jul, 2016

Permalink

Report Abuse

Nice

Ram problem

Gyan Prakash

Certified Buyer, Patna

Jul, 2017

Permalink

Report Abuse

Terrific purchase
