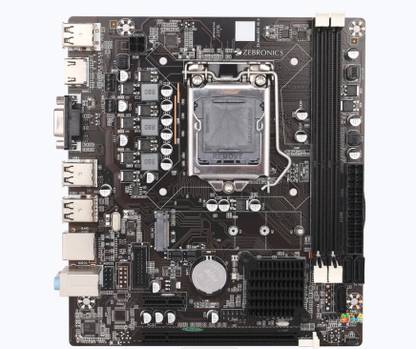

ZEBRONICS ZEB-H61 M2 WITH NVME SSD SLOT MOTHERBOARD LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard for Desktop, Workstation

Compare

ZEBRONICS ZEB-H61 M2 WITH NVME SSD SLOT MOTHERBOARD LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard for Desktop, Workstation

Be the first to Review this product

Special price

₹1,769

₹4,499

60% off

+ ₹19 Protect Promise Fee Learn more

Secure delivery by 4 Jun, Wednesday

Available offers

Bank Offer5% Unlimited Cashback on Flipkart Axis Bank Credit Card

T&C

Bank Offer10% instant discount on SBI Credit Card EMI Transactions, up to ₹1,500 on orders of ₹5,000 and above

T&C

Bank Offer10% off up to ₹1,500 on all Axis Bank Credit Card (incl. migrated ones) EMI Txns of ₹5,000 and above

T&C

Special PriceGet extra 29% off (price inclusive of cashback/coupon)

T&C

2 YEAR WARRANTYKnow More

Delivery

Check

Enter pincode

Delivery by4 Jun, Wednesday|Free₹40

if ordered before 4:32 AM

View Details

Highlights

Suitable For Desktop, Workstation
Intel H61
Data Rate DDR3
Maximum RAM Capacity 16 GB
Form Factor: Micro-ATX

Services

2 YEAR WARRANTY
Cash on Delivery available
?

Seller

KrishnaTechRetail18

No Returns Applicable
?

See other sellers

Description

Supported CPU Intel Pentium/Celeron/Core i3, i5, i7 Series Processors in LGA 1155 Chipset Intel H61/H67 Memory Supported 2nos DDR3 Dual channel RAM slots Memory up to 16GB Supports dual channel DDR3 1066/1333/1600MHz memory BIOS AMI BIOS I/O Interface 1 x HDMI port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio Onboard Interface 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 6 x USB 2.0 Ports, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors, 3 x SATA II Ports, 1 x 3pin CMOS Header, m.2 Slot Integrated Sound With 6-Channel HD Audio Codec onboard Integrated LAN Supports Realtek 8106E 10/100 Mbps Expansion Slot 1 x PCI Express 2.0 x16 size slot, 1 x PCI Express 2.0 x1 size slot Form Factor Micro-ATX

Specifications

In The Box

Sales Package

1 UNIT OF H61 M2 MOTHERBOARD

General

Brand	ZEBRONICS
Model ID	ZEB-H61 M2 WITH NVME SSD SLOT MOTHERBOARD

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel Pentium/Celeron/Core i3, i5, i7 Series Processors in LGA 1155
Chipset	Intel H61, Intel® H61Chipset
Chipset Manufacturer	INTEL

Memory

Memory Configuration	16 GB DDR3 2nos DDR3 Dual channel RAM slots Memory up to 16GB Supports dual channel DDR3 1066/1333/1600MHz memory DDR3
Memory Frequency	1066/1333/1600 MHz

Graphics

Integrated Graphics card	Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155
External Graphics Card Support	Yes

Audio

Audio Codec	Realtek 662 3xAudio Jacks for 6 channel High definition audio
Audio Channels	6
Audio Features	Realtek 662 3xAudio Jacks for 6 channel High definition audio

Connectivity

Ethernet Controller	Supports Realtek 8106E 10/100 Mbps
Ethernet Card	Supports Realtek 8106E 10/100 Mbps
Ethernet Features	Supports Realtek 8106E 10/100 Mbps
Wireless and Bluetooth	OPTIONAL and OPTIONAL

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	1
PCIe x16 Slots, Generation	1

Internal I/o Headers

USB 2.0 Headers	3
ATX Power Connectors	1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 PS/2 mouse/keyboard port, 1 VGA port, 1HDMI port, 4 USB 2.0 ports, 1 LAN port, 3 audio jacks, 1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports, 4 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header, 1 PCI Express x16 slot, 1 PCI Express x1 slot

Back Panel Ports

USB 2.0 Ports, Controller	4
HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1

General Features

Support CDs	Drivers CDs
OS Support	WINDOWS 7, WINDOWS 8, WINDOWS 10
BIOS	AMI BIOS
Advanced Technologies	Intel Pentium/Celeron/Core i3, i5, i7 Series Processors in LGA 1155
Advanced Features	1 NVME SLOT

Limitations

16GB

Warranty

Warranty Summary	2 YEAR WARRANTY
Covered in Warranty	Manufacturing Defect
Not Covered in Warranty	ANY KIND OF BREAKAGE OF PRODUCT OR BURNT
Warranty Service Type	SERVICE CENTRE WARRANTY
