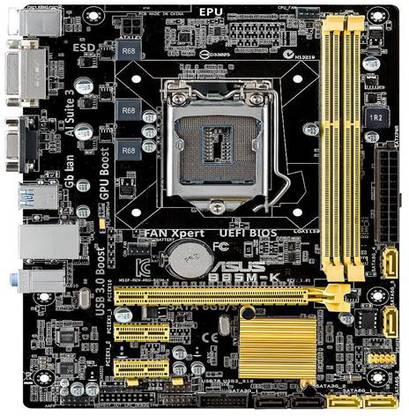

ASUS B85M-K LGA 1150Socket ATX Intel B85 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

3 Years Asus India Warranty and Free Transit InsuranceKnow More

Highlights

Intel B85
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	2
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2

In The Box

Sales Package

Users Manual, I/O Shield, 2 x SATA 6Gb/s Cable

General Features

Support CDs	Drivers, Asus Utilities, EZ Update, Anti-Virus Software (OEM Version)
OS Support	Windows: 7, 8, 8.1
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, Asus EZ Flash 2, Asus CrashFree BIOS 3, My Favorite, Quick Notes on Revision of the Record, F12 Screenshots, F3 Shortcut Functions and Asus DRAM SPD (Serial Presence Detect) Memory Information
Features	AI Suite 3, Asus Q-Design: Asus Q-Slot, Management Capabilities: WfM 2.0, Quick Sync Video, WOL by PME, Asus EPU - EPU Asus Exclusive Features: GPU Boost, Asus EFI BIOS EZ Mode Provides Easy to Use User Interface, Network iControl, Multi-VGA Output Support: DVI / RGB Ports, Supports DVI Maximum Resolution of 1920 x 1200 at 60 Hz, Support RGB Maximum Resolution 1920 x 1200 at 60 Hz, Support Intel InTru 3D, ESD Guards, Dimensions: 226 x 175 mm, Asus EZ Flash 2, PXE, Hard Capacity to Unlock Asus Quiet Thermal Solution: Unique Style Fanless Design Thermal Solution, DMI 2.0, Built-in Graphics Processor (Integrated Graphics Processor), Asus Fan Xpert Asus EZ DIY: Asus CrashFree BIOS 3, Anti Surge, Ai Charger, USB 3.0 Boost
Advanced Technologies	Support Intel Turbo Boost Technology 2.0, Clear Video HD Technology, Support Intel Quick Start Technology (Intel Rapid Start Technology), Intel Wisdom Connection Technology (Intel Smart Connect Technology)
Advanced Features	Support Intel 22 nm CPU, Support Intel Extreme Memory Profile (XMP), Hyper DIMM Support is Subject to Whether the Properties of Individual Entities Depending on the CPU

Warranty

Warranty Summary

3 Years Asus India Warranty and Free Transit Insurance

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processors, Intel 4th Generation Core i7 Processors, Intel 4th Generation Core i3 Processors, Intel Celeron Processors, Intel 4th Generation Core i5 Processors
Chipset	Intel B85
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card

Storage

SATA 3 Gb/s	Intel B85
SATA 6 Gb/s	Intel B85

Expansion Slots

PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1

General

Brand	ASUS
Model ID	B85M-K
Color	Black
Key Features	ATX Form Factor, Maximum 16 GB DDR3, Intel B85 Chipset, LGA 1150 Socket Type, 2 Memory Slots, Dual Channel Memory

Connectivity

Ethernet Controller	Realtek 8111G
Ethernet Features	1 x Gigabit LAN Controller

Audio

Audio Codec	Realtek ALC887
Audio Channels	8
Audio Features	High Definition Audio Codec, Support: Plug Detection, Front Panel Jack Specified Functions

Internal I/o Headers

SATA 3 Gb/s Headers	2
SATA 6 Gb/s Headers	4
USB 2.0 Headers	2
USB 3.0 Headers	1
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x S / PDIF Output Connector, 1 x Internal Speaker Connector, 1 x CPU Fan Header (1 x 4-pin), 1 x Clear CMOS Jumper, 1 x Front Panel Audio Connector (AAFP), 1 x 4-pin ATX 12 V Power Connector, 1 x 24-pin EATX Power Connector, 1 x Chassis Fan Connector (1 x 4-pin)
