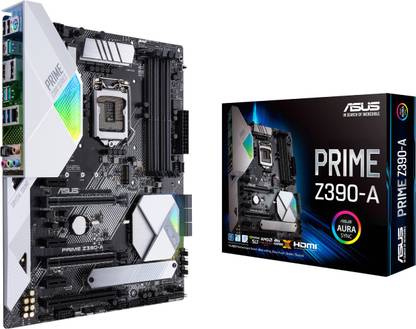

ASUS Prime Z390-A LGA1151Socket ATX Intel Z390 Chipset DDR4 Motherboard for Desktop

Price: Not Available

Currently Unavailable

3 Years Limited Local WarrantyKnow More

Highlights

Suitable For Desktop
Intel Z390
Data Rate DDR4
Maximum RAM Capacity 128 GB
Form Factor: ATX

Description

Dressed in professional attire, the Prime Z390 series caters to daily users and content creators with well-rounded specs and features. Combining the benefits of the latest processors with essential ASUS design and engineering, Prime Z390 provides a wealth of options for performance tuning via intuitive software and firmware features.

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	9
HDMI Ports	1
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
PS/2	1

In The Box

Sales Package

1 Mother Board, User Manual, Asus Q-Shield, 3 x SATA 6 Gbps Cables, M.2 Screw Package, SCD, SLI HB Bridge (2-WAY-M), Q-Connector, CPU Fan Holder

General Features

OS Support	Windows 10 64-bit
BIOS	128 MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, Asus EZ Flash 3, Crash Free BIOS 3, F11 AI OC Guide, F6 Qfan Control, F3 My Favorites, Last Modified Log, F9 Search, F12 Print Screen, and Asus DRAM SPD (Serial Presence Detect) Memory Information
Advanced Features	5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App - Procool Power connector design TPU - Auto Tuning, TPU, GPU Boost Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS Optimem II： - Improved DDR4 Stability ASUS EPU : - EPU ASUS Exclusive Features : - MemOK! II - AI Suite 3 - Ai Charger

Warranty

Domestic Warranty	3 Year
International Warranty	0 Year
Warranty Summary	3 Years Limited Local Warranty
Covered in Warranty	Product Warranty Limited to Manufacturing Defects Only
Not Covered in Warranty	Physical Damage
Warranty Service Type	Carry-in

Memory

Memory Configuration	128 GB DDR4 Dual Channel DIMM
Memory Frequency	4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* MHz
ECC Support	Non-ECC
Buffered Memory	No

Essentials

Form Factor	ATX
Socket Type	LGA1151
Compatible Processors	Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
Chipset	Intel Z390
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Intel HD Graphics Support
External Graphics Card Support	Yes

Storage

SATA 6 Gb/s	6, Intel Z390 Chipset
RAID Controller	Intel Z390
RAID Configurations	0, 1, 5, 10

General

Brand	ASUS
Series	Z390-A
Model ID	Prime Z390-A
Designed For	Desktop
Key Features	• AI overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts. • OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking • Enhanced power solution: Premium components provide better power efficiency • UEFI BIOS: New UEFI options include a search function that allows you to find settings easily • Industry-leading cooling options: Comprehensive controls for fans and AIO pimp, via Fan Xpert 4 or the acclaimed UEFI • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20°C for unthrottled transfer speeds and enhanced reliability • Next-gen connectivity: Supreme flexibility with Intel Optane memory ready, Intel® RST support, Thunderbolt 3 header and dual M.2 support

Connectivity

Number of Com Ports

Audio

Audio Codec

ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

Audio Features

DTS Headphone:X - Optical S/PDIF out port(S) at back panel - audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	6
USB 3.0 Headers	9
Other Connectors	1 x HDMI 1 x LAN (RJ45) port(s) 3 x USB 3.2 Gen 2 (teal blue)Type-A, 1 x USB 3.2 Gen 2 Type-C 2 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) Internal I/O Ports: 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen 1 front panel TypeC™ connector 3.2 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x EXT_Fan header 1 x Thermal sensor connector 1 x M.2 Fan Header
