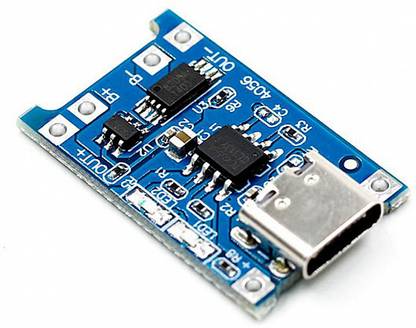

ELECSYNERGY TP4056 1A Li-ion lithium Battery Charging Module - Type C Electronic Components Electronic Hobby Kit

This TP4056 1A Li-Ion Battery Charging Board Type C with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don't have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished. Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time. The TP4056 module is a compact and efficient charging circuit designed to safely charge lithium-ion (Li-ion) and lithium-polymer (LiPo) batteries. It uses the TP4056 IC to control the charging process and ensure that the battery is charged safely and effectively. The module is often used in DIY electronics projects, battery-powered devices, and other applications where reliable battery charging is needed. Using the module: Connect Type C cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module Connect cell to charge to B+/B- pads on the right-hand side of the module. A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side Important! Disconnect load when charging The red LED indicates charging in progress, the green LED indicates charging has finished. Never charge your battery at a rate greater than 1C.
