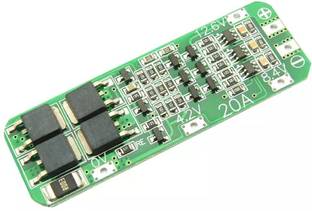

electrolight 3S 20A Li-ion Lithium Battery 18650 Charger Protection Board PCB BMS 12.6V Cell Charging Protecting Module Lipo Cell Module Micro Controller Board Electronic Hobby Kit

Description: Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries) Product size:59*20*3.4mmProduct weight: 4.4g Charging voltage: 12.6V Maximum output current: 20A Maximum output power / charging power: 252W Precautions: 1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip. 2.After connection,it need to first charge activation, then will have the output. Note: Do not mix the good battery and poor battery to use.The internal resistance of 3 battery capacity are closer will be better.Please buyers know the professional knowledge of this module before buying.
