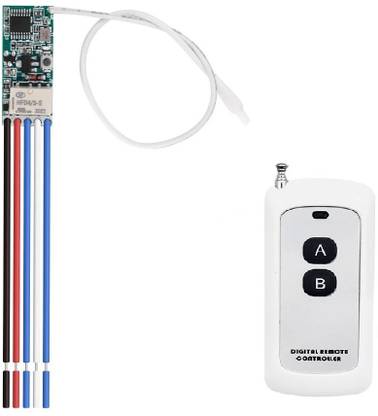

Electronic spicess 1 channel Mini wireless remote control switch 433Mhz 3V-5V miniature RF receiver Electronic Components Electronic Hobby Kit

KR1201MINI2-4 Electrical parameters: Working voltage: 3-5V Standby current: ?6mA (without power saving mode) Working current: (working current of the module itself, non-external load current) generally 5mA Load power: 30W, 1A/30VDC 0.3A/125VAC Receiving frequency: 920MHZ Receiving sensitivity: -100dBM Port output impedance: 50ohm Modulation type: ASK/OOK Support encoding format: 1527 learning code Learning method: key learning Working mode: Jog, self-locking, interlocking, clearing code, setting switch state (open or closed when switching) Storage quantity: Maximum storage of 12 groups of instructions. Working temperature: -20~80 degrees Dimensions: 3 * 13 * 6.8 Weight: 4g Application range: motor drive, signal switch, micro control, lamp control, etc. Recommended solutions: 110V 30W ultraviolet disinfection lamp control (US regulations), model DIY remote control, electric lock remote switch spiritual door lock, LED lamp with remote control, etc.
