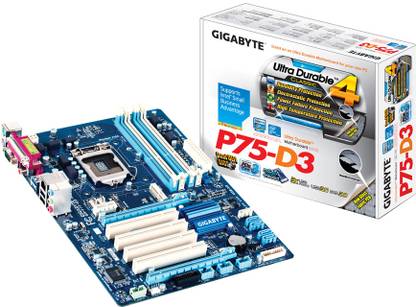

GIGABYTE GA-P75-D3 LGA 1155Socket ATX Intel B75 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts Toll Free - 1800 425 4945 ; "gigabytesupport@accelfrontline.in" in Case of Support.

Highlights

Intel B75
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

Motherboard, Sata Cables, Rear I/O panel and support CD

General

Brand	GIGABYTE
Model ID	GA-P75-D3

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel Pentium Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor, Intel Celeron Processor
Chipset	Intel B75
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC

Storage

SATA 3 Gb/s	Intel B75 Chipset
SATA 6 Gb/s	Intel B75 Chipset

Graphics

Multi GPU Support

Yes, AMD CrossFireX

Audio

Audio Codec	Realtek ALC887
Audio Features	High Definition Audio

Connectivity

Ethernet Controller	Realtek GbE
Ethernet Features	10/100/1000 Mbits/sec

Expansion Slots

PCI Slots	4
PCIe x1 Slots, Generation	2, 1
PCIe x16 Slots, Generation	1

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	1
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Clear CMOS Jumper, 1 x mSATA Connector, 1 x S/PDIF Out Header, 1 x 4-pin ATX 12V Power Connector

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	2
Audio I/O Channels	3
Optical S/PDIF Ports and S/PDIF Out ports	1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	2

General Features

Hardware Monitoring	System Voltage Detection, CPU / System Temperature Detection, CPU / System Fan Speed Detection, CPU Overheating Warning, CPU / System Fan Fail Warning, CPU / System Fan Speed Control
Bundled Software	Norton Internet Security (OEM version)
OS Support	Windows XP and Above
BIOS	2 x 64 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Features	Software Monitor, Data Backup and Restore, PC Health Center, USB Blocker, Electrostatic Protection, Power Failure Protection, High Temperature Protection, Energy Saver, Humidity Protection
Advanced Technologies	Intel Rapid Start Technology, Intel Smart Connect Technology, UEFI DualBIOS Technology, On/Off Charge Technology
Advanced Features	Support for BIOS, Support for Q-Flash, Support for Xpress Install, Support for Xpress Recovery2, Support for Auto Green, Support for ON/OFF Charge, Support for Q-Share, Support for LAN Optimizer

Limitations

Due to a Windows 32-bit Operating System Limitation, When More than 4 GB of Physical Memory is Installed, To Configure 7.1 - Channel Audio, You ave to Use an HD Front Panel Audio Module and Enable the Multi - Channel Audio Feature through the Audio Driver.

Dimensions

215 x 305 mm

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts Toll Free - 1800 425 4945 ; "gigabytesupport@accelfrontline.in" in Case of Support.
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In
