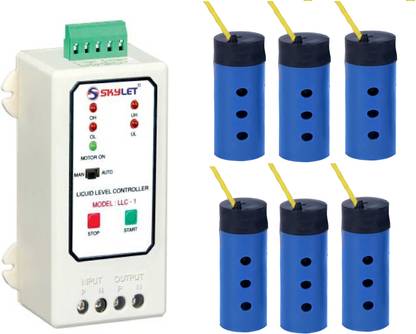

SKYLET LLC1 water level controller Wired Sensor Security System

Warranty: 1 Year Manufacture, Warranty Service : Replacement, Package contains : 1 Water level controller unit, 6 Sensors, 1 User Manual with all technical details, 1 Pack mounting screw. Working : This model automatically switch ON and switch OFF Motor. When water level of overhead tank becomes low means water get down from middle sensor and water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off. AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY. Suitable for motor up to 5 HP, 40 A load capacity. Protect motor from dry running. Motor ON OFF LED indication provided. Water Level indication provided for both tank. Supply voltage : 220-280 V AC, Sensing element : carbon sensor, it is free from oxidation, long life. Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button of controller. Also Suitable for MCB Starter panel see diagram above for connection. Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.
