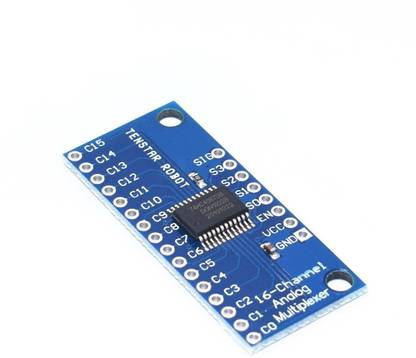

TRUSTECH CD74HC4067 High Speed ​​CMOS 16-Channel Analog/Digital Multiplexer Breakout Module Electronic Components Electronic Hobby Kit

The CD74HC4067 High-Speed CMOS 16-Channel Analog/Digital Multiplexer Breakout Module is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer. This chip is like a rotary switch – it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins (CHANxx). It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction. To control it, connect 4 digital outputs to the chip’s address select pins (S0-S3), and send it the binary address of the channel you want (see the datasheet for details). This allows you to connect up to 16 sensors to your system using only 5 pins!||6ns break-before-make @ 4.5V;Wide operating temperature range: -55C to 125C;1 x CD74HC4067 High-Speed CMOS 16-Channel Analog/Digital Multiplexer Breakout Module – Unsoldered.
